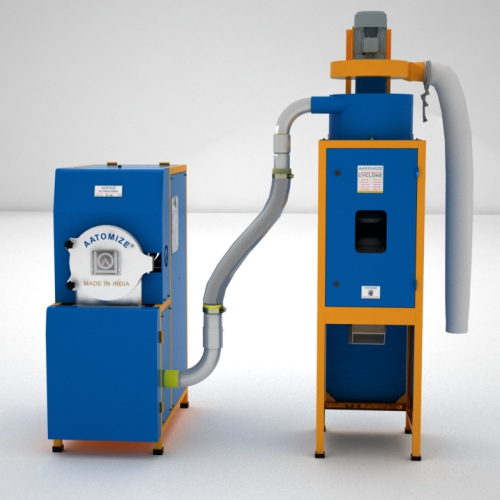

Product Details

Product Description

Model No. : AZC502A
Grinding Capacity : 40 to 60 kg
Automation Grade : Automatic
Material : MS Body
Power Source : Electric
Voltage (V) : 415
Current (A) : 7.5
Corrosion Resistance : Yes
Power Consumption : 5.00 KWH
Motor Speed RPM : 2880 rpm
Frequency (HZ) : 50
Motor Type : Three Phase
Motor Capacity : 5HP
Coating : Powder Coating
Chamber : Double Chamber
Machine Dimension Inch : L-36" W-19" H-49.5"
Front Chamber Dimension Inch : 12" Dia x 6.5" Depth
Back Chamber Dimension Inch : 6.5" Dia x 4" Depth
Cyclone Motor : 0.5 hp & 0.5 hp
Cyclone Dimension Inch : L-22" W-22" H-93"
